500V9 Electric Paper Cutter Machine

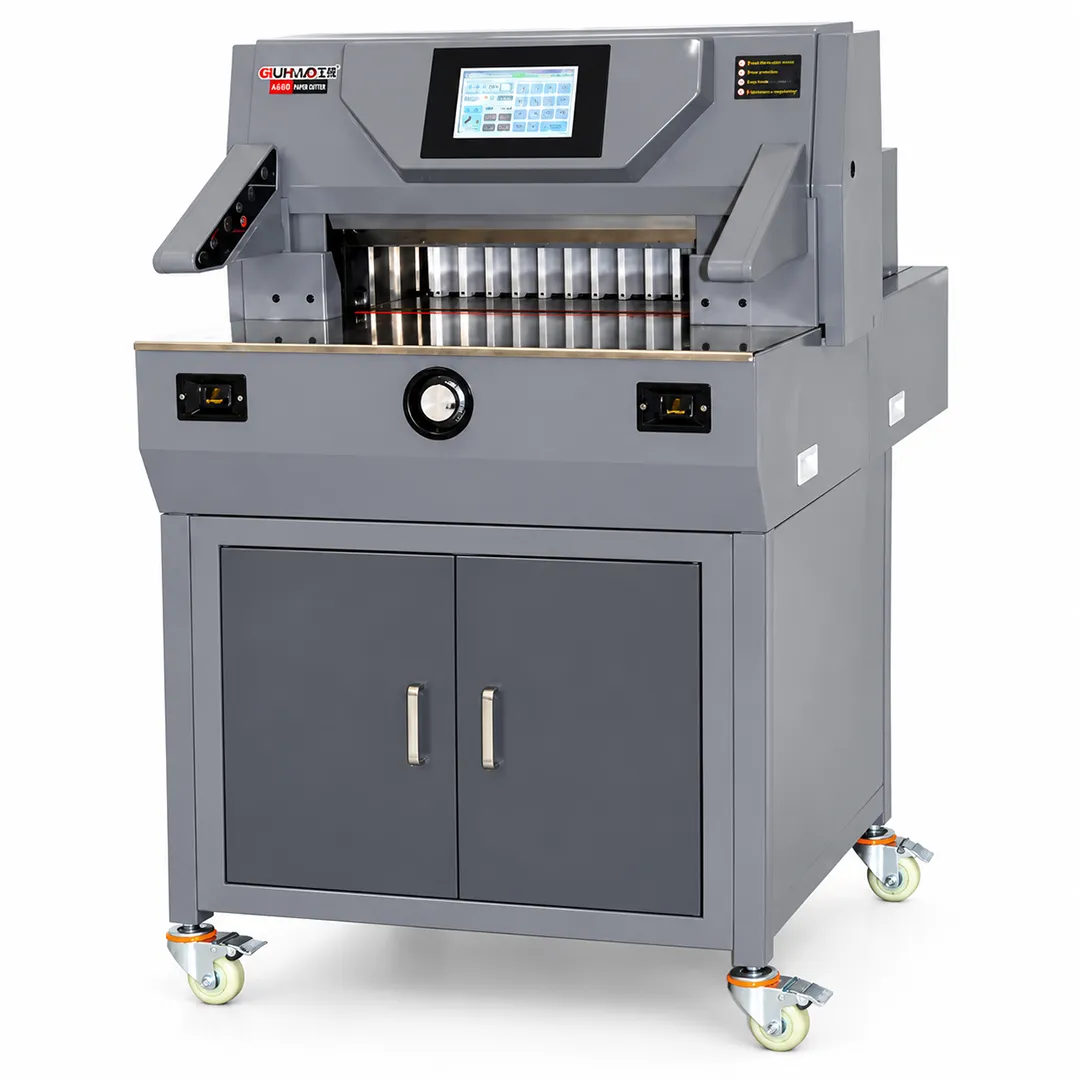

GL500V9 Digital Paper Cutting Machine

Fully automatic digital paper cutter engineered for precision.Touchscreen control with programmable memory.

  • Touchscreen panel with up to 199 programs
  • Automatic clamp and push
  • Stepper motor with laser cut line guide
  • IR safety curtain, dual-hand operation, emergency stop
  • 500mm cutting width, 90mm height, +/-0.3mm
Order On WhatsApp

Why Choose GL500V9 Digital Paper Cutting Machine?

450.0

Digital Control

Automation Operation

Precise Cutting

Safe & Reliable

Technical Specifications

Model GL500V9
Max. Cutting Size (mm) 500x500 mm
Min. Cutting Size 30 mm
Max. Cutting Height 90 mm
Precision ±0.3 mm
Clamp PaperAutomatic
Push PaperAutomatic
Cutting Length Behind Knife500 mm
Table Length Infront Knife235 mm
SafetyIR Bar / Safety Curtain
Operation ModeFully Automatic
Drive TypeManual
Clamp TypeElectric Clamp
Back Gauge ControlProgrammable
Suitable MaterialPaper
Power SupplyAC 220V/110V ±10% 50/60Hz, 1300W
Main Motor Power-1.5 to 2.2 kW
Gross Weight280 kg
Shipping Dimension1300x800x1070 mm
ApplicationPrinting Press, Paper Mill, Packaging Unit

GL500V9 Digital Paper Cutting Machine Details

  • The Growlam GL500V9 is a heavy-duty digital paper cutter.
  • It cuts 500 mm wide and stacks up to 90 mm high.
  • You control it from a touchscreen.
  • A programmable digital back gauge sets each cut to the exact size.
  • A laser guide shows you exactly where the blade will cut.
  • It comes with several built-in safety features.
  • It suits printing presses, book binding, packaging units and paper mills.

Ideal For

PRINTING PRESSES

BOOK BINDING

PACKAGING UNIT

PAPER MILL

Frequently Asked Questions

1. What is the Growlam GL500V9 used for?

The Growlam GL500V9 is a fully automatic, heavy-duty digital paper cutter. It suits printing presses, book binding, packaging units and paper mills.

2. How much paper can it cut, and how accurately?

It has a 500 mm cutting width and a 90 mm cutting height. It cuts accurately to within ±0.3 mm.

3. Can I save cutting settings for repeat jobs?

Yes. The touchscreen control panel can store up to 199 programs. You can save the cut sizes for regular jobs and reuse them anytime, without setting the machine up again.

4. How does the GL500V9 make sure every cut is in the right place?

A stepper motor drives the programmable back gauge, which positions the paper precisely. A laser line shows you exactly where the blade will cut before you start, and the clamp and paper push run automatically.

5. What safety features does the GL500V9 have?

It has an infrared (IR) safety curtain that stops the blade if a hand comes near it. It also needs both hands on the controls to start a cut, and it has an emergency stop button.
